Box End Wrenches

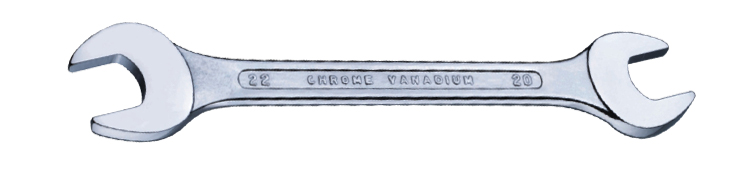

ART # 51 DOUBLE OPEN END WRENCHES LONG PATTERN (DIN 3110), Sizes : 6X7 to 36X41mm







DESCRIPTION



HIGH PERFORMANCE
High Performance
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.



SIZE LENGTH WT/PC QTY/CTN GR.WT/CTN VOL./CTN
6X7 121 0.025 500 13.600 0.012
8X9 139 0.035 500 18.600 0.012
10X11 157 0.05 300 16.100 0.014
12X13 171 0.065 200 14.100 0.014
14X15 188 0.085 200 18.100 0.016
16X17 204 0.115 150 18.300 0.017
18X19 221 0.16 100 17.100 0.017
20X22 235 0.200 75 16.000 0.015
21X23 245 0.23 75 18.300 0.012
24X27 263 0.300 50 16.500 0.013
25X28 275 0.350 50 18.500 0.013
30X32 300 0.480 30 15.300 0.011
Sets Sizes
6M I 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM
6M II 6x7, 8x10, 10x12, 12x13, 14x15, 17x19 MM
7M 6x7, 8x10, 9x11, 10x12, 12x13, 14x17 , 19x22 MM
8M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM
11M 8x10, 10x12, 12x13, 14x15, 13x17, 17x19, 19x22, 22x24, 24X27, 27X30, 30X32 MM
12M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21X23, 24X26, 25X28, 30X32 MM
