ART # 171 DOUBLE OPEN END WRENCHES Acc. To ANSI / ASME B107.100-2002 (B107.39)

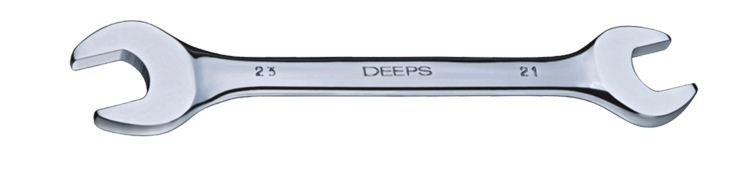

Double Open End Wrenches

SIZE LENGTH SPANNER WT. QTY./CTN NET NET WT./ CTN GR. WT./CTN VOL/CTN
6X7 109 0.022 800 17.600 19.700 0.024
8X9 119 0.035 600 21.000 22.700 0.025
10X11 129 0.043 500 21.500 23.500 0.023
12X13 144 0.057 300 17.100 18.500 0.022
14X15 160 0.083 250 20.800 22.000 0.019
16X17 179 0.111 200 22.200 23.900 0.019
18X19 199 0.131 150 19.700 21.100 0.02
20X22 226 0.199 100 19.900 21.000 0.018
21X23 245 0.23 75 17.300 18.100 0.02
24X27 263 0.3 75 22.500 23.500 0.018
25X28 275 0.381 50 19.100 19.900 0.02
30X32 300 0.495 40 19.800 20.500 0.016
Sets Sizes
5A 1/4 X 5/16, 3/8 X 7/16, 1/2 X 9/16, 11/16, 19/32, 5/8 X 3/4
6M I 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM
6M II 6x7, 8x10, 10x12, 12x13, 14x15, 17x19 MM
7M 6x7, 8x10, 9x11, 10x12, 12x13, 14x17 , 19x22 MM
7A 1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 13/16 x 7/8, 15/16 x 1"
8M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM
8A 1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 3/4 X 25/32, 13/16 x 7/8, 15/16 x 1"
11M 8x10, 10x12, 12x13, 14x15, 13x17, 17x19, 19x22, 22x24, 24X27, 27X30, 30X32 MM
12M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21X23, 24X26, 25X28, 30X32 MM
