Box End Wrenches

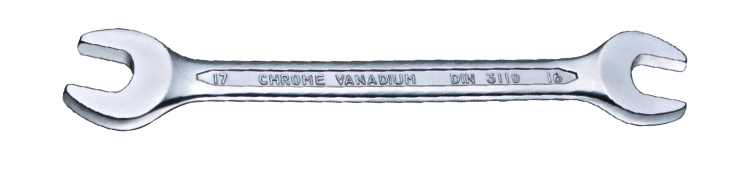

ART # 1051 DOUBLE OPEN END WRENCHES COLD COINED & STAMPED (DIN 3110), Sizes : 6X7 to 36X41mm





double Open End Wrenches

Patterns

FLANK
Spanners Pattern



DESCRIPTION



HIGH PERFORMANCE
High Performance
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.



SIZE LENGTH WT/PC QTY/CTN GR.WT/CTN VOL./CTN
6X7 121 0.023 500 12.600 0.012
8X9 139 0.030 500 16.100 0.012
10X11 157 0.050 300 16.100 0.014
12X13 171 0.070 200 15.100 0.014
14X15 188 0.092 200 19.500 0.016
16X17 204 0.118 150 18.900 0.017
18X19 221 0.150 100 16.100 0.017
20X22 235 0.190 75 15.300 0.015
21X23 245 0.228 75 18.100 0.012
24X27 263 0.290 50 15.500 0.013
25X28 275 0.365 50 19.300 0.013
30X32 300 0.484 30 15.400 0.011
Sets Sizes
6M I 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM
6M II 6x7, 8x10, 10x12, 12x13, 14x15, 17x19 MM
7M 6x7, 8x10, 9x11, 10x12, 12x13, 14x17 , 19x22 MM
8M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM
11M 8x10, 10x12, 12x13, 14x15, 13x17, 17x19, 19x22, 22x24, 24X27, 27X30, 30X32 MM
12M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21X23, 24X26, 25X28, 30X32 MM
