Box End Wrenches

ART # 81 COMBINATION SPANNER RAISED PANELAcc. To ANSI / ASME B107.100/2002(B107.6)

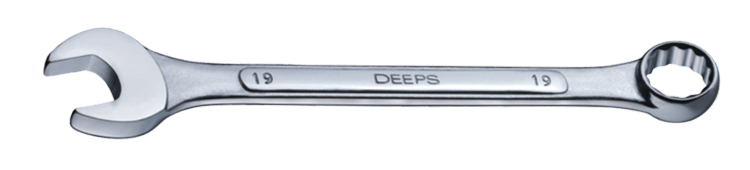

Combination Spanner Raised Panel



SIZE SAE LENGTH SPANNER WT. QTY./CTN NET NET WT./ CTN GR. WT./CTN VOL/CTN
6 1/4" 95 0.021 1000 21.000 24.500 0.021
7 ** 95 0.024 800 19.200 22.100 0.021
8 5/16" 101 600 16.200 18.500 0.02
9 11/32" 107 0.031 600 18.600 22.700 0.02
10 3/8" 117 0.036 400 14.400 17.300 0.019
11 7/16" 130 0.039 400 15.600 18.500 0.018
12 ** 142 0.062 300 18.600 20.800 0.018
13 1/2" 150 0.065 300 19.500 20.500 0.02
14 9/16" 164 0.078 200 15.600 17.300 0.018
15 19/32" 174 0.088 200 17.600 18.300 0.016
16 5/8" 186 0.109 150 16.400 17.200 0.02
17 11/16" 203 0.122 150 18.300 19.100 0.02
18 ** 214 0.153 100 15.300 16.100 0.021
19 3/4" 230 0.173 100 17.300 18.100 0.021
20 25/32" 230 0.178 100 17.800 18.600 0.021
21 13/16" 255 0.234 80 18.700 19.700 0.019
22 7/8" 282 0.25 80 20.000 21.000 0.019
23 ** 282 0.263 80 21.000 22.000 0.02
24 15/16" 314 0.302 60 18.100 18.900 0.02
25 1" 334 0.394 50 19.700 20.700 0.018
26 ** 334 0.407 50 20.400 21.200 0.018
27 1-1/16" 360 0.491 40 19.600 20.300 0.019
28 1-1/8" 379 0.553 40 22.100 22.800 0.016
30 1-3/16" 379 0.596 30 17.900 18.600 0.016
32 1-1/4" 409 0.7 30 21.000 21.700 0.018
Sets Sizes
3M 8, 10, 12MM
6M I 6, 9, 10, 13, 15, 17MM
6M II 8, 10, 12, 13, 14, 17MM
6M III 9, 10, 11, 14, 17, 19MM
6M IV 11, 12, 13, 14, 15, 16MM
7M 10, 11, 12, 13, 14, 17, 19MM
7A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8A 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8M I 6, 8, 9, 10, 13, 15, 17, 19MM
8M II 8, 9, 10, 12, 13, 14, 17, 19MM
8M III 6, 8, 10, 12, 13, 14, 17, 19MM
8M IV 8, 10, 11, 12, 13, 14, 17, 19MM
8M V 8, 9, 10, 11, 13, 14, 17, 19MM
9A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
9M I 8, 10, 11, 12, 13, 14, 15, 17, 19MM
9M II 8, 10, 11, 12, 13, 14, 15, 17, 19, 22MM
9M III 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M I 6, 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M II 8, 10, 12, 13, 14, 17, 19, 22, 24, 27MM
10M III 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
11M I 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM
11M II 8, 9, 10, 11, 12, 13, 14, 17, 19, 22, 24MM
12M I 6, 7, 8, 9, 10, 11, 12, 13, 15, 17, 19, 22MM
12M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
12M III 8, 9, 10, 12, 13, 14, 17, 19, 22, 24, 27, 32MM
12M IV 8, 10, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32MM
12M V 10, 12, 13, 14, 16, 17, 19, 22, 24, 27, 30, 32MM
12M VI 6, 8, 9, 10, 11, 13, 14, 16, 17, 19, 21, 22MM
12M VII 10, 13, 15, 17, 19, 21, 22, 24, 25, 27, 28, 32MM
12M VIII 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22MM
12M IX 6, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 22MM
14M I 6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22, 24, 27MM
14M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19MM
14M III 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24MM
14M IV 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 23, 24MM
14M V 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24MM
15M 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 32MM
16M 8, 9, 10, 11, 12, 13, 14, 17, 19, 21, 22, 23, 24, 27, 30, 32MM
17M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22MM
21M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 25, 27, 28, 30, 32MM
22M I 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32MM
22M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 23, 24, 26, 27, 28, 30, 32MM
22M III 6 to 19 & 10, 13, 21, 22, 24, 27, 30, 32MM
22AM I 6, 7, 8, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
22AM II 6, 7, 8, 9, 10, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 11/32, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4"
25M 6 to 28, 30, 32MM
25AM 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1"
26M 6 to 30, 32MM
27M I 6 to 32MM
27M II 6 to 28, 30, 32, 36, 38MM
30AM 6, 8, 10, 12, 13, 14, 15, 17, 18MM | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
32M 6 to 28, 30, 32, 34, 36, 38, 41, 46, 48, 50MM
