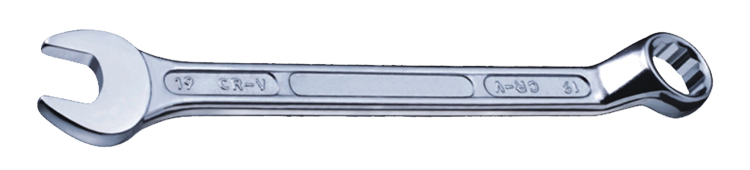

ART # 611 COMBINATION SPANNER SHALLOW OFFSET (Acc. To DIN-3113B)




Combination Spanner Shallow Offset



DESCRIPTION



HIGH PERFORMANCE
High Performance
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.



SIZE SAE LENGTH SPANNER WT. QTY./CTN NET NET WT./ CTN GR. WT./CTN VOL/CTN
5 ** 86 0.018 1000 18.000 20.500 0.019
5.5 0.018 1000 18.000 20.500 0.019
6 1/4" 93 0.02 1000 20.000 23.500 0.021
7 ** 97 0.024 1000 24.000 27.500 0.021
8 5/16" 103 0.03 600 18.000 20.300 0.02
9 11/32" 113 0.038 500 19.000 22.500 0.02
10 3/8" 128 0.046 400 18.400 21.300 0.019
11 7/16" 140 0.064 300 19.200 21.500 0.018
12 0.074 152 14.800 16.400 0.016
13 1/2" 165 0.08 200 16.000 17.000 0.016
14 9/16" 178 0.098 200 19.600 21.300 0.018
15 19/32" 190 0.12 150 18.000 18.700 0.016
16 5/8" 200 0.136 150 20.400 21.200 0.02
17 11/16" 216 0.166 100 16.600 17.300 0.02
18 ** 228 0.212 100 21.200 22.000 0.021
19 3/4" 241 0.222 100 22.200 23.000 0.021
20 25/32" 253 0.273 100 27.300 28.100 0.021
21 13/16" 266 0.315 50 15.800 16.600 0.019
22 7/8" 278 0.336 50 16.800 17.600 0.019
23 ** 278 0.347 50 17.400 18.200 0.02
24 15/16" 303 0.385 50 19.300 20.000 0.02
25 1" 330 0.469 40 18.800 19.800 0.018
26 ** 330 0.519 40 20.800 21.500 0.018
27 1-1/16" 343 0.532 40 21.300 22.000 0.019
28 1-1/8" 358 0.583 30 17.500 18.200 0.016
29 0.587 30 17.600 18.300 0.016
30 1/-316" 381 0.62 30 18.600 19.300 0.016
32 1-1/4" 405 0.748 30 22.400 23.100 0.018
Sets Sizes
3M 8, 10, 12MM
6M I 6, 9, 10, 13, 15, 17MM
6M II 8, 10, 12, 13, 14, 17MM
6M III 9, 10, 11, 14, 17, 19MM
6M IV 11, 12, 13, 14, 15, 16MM
7M 10, 11, 12, 13, 14, 17, 19MM
7A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8A 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8M I 6, 8, 9, 10, 13, 15, 17, 19MM
8M II 8, 9, 10, 12, 13, 14, 17, 19MM
8M III 6, 8, 10, 12, 13, 14, 17, 19MM
8M IV 8, 10, 11, 12, 13, 14, 17, 19MM
8M V 8, 9, 10, 11, 13, 14, 17, 19MM
9A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
9M I 8, 10, 11, 12, 13, 14, 15, 17, 19MM
9M II 8, 10, 11, 12, 13, 14, 15, 17, 19, 22MM
9M III 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M I 6, 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M II 8, 10, 12, 13, 14, 17, 19, 22, 24, 27MM
10M III 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
11M I 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM
11M II 8, 9, 10, 11, 12, 13, 14, 17, 19, 22, 24MM
12M I 6, 7, 8, 9, 10, 11, 12, 13, 15, 17, 19, 22MM
12M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
12M III 8, 9, 10, 12, 13, 14, 17, 19, 22, 24, 27, 32MM
12M IV 8, 10, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32MM
12M V 10, 12, 13, 14, 16, 17, 19, 22, 24, 27, 30, 32MM
12M VI 6, 8, 9, 10, 11, 13, 14, 16, 17, 19, 21, 22MM
12M VII 10, 13, 15, 17, 19, 21, 22, 24, 25, 27, 28, 32MM
12M VIII 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22MM
12M IX 6, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 22MM
14M I 6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22, 24, 27MM
14M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19MM
14M III 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24MM
14M IV 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 23, 24MM
14M V 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24MM
15M 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 32MM
16M 8, 9, 10, 11, 12, 13, 14, 17, 19, 21, 22, 23, 24, 27, 30, 32MM
17M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22MM
21M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 25, 27, 28, 30, 32MM
22M I 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32MM
22M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 23, 24, 26, 27, 28, 30, 32MM
22M III 6 to 19 & 10, 13, 21, 22, 24, 27, 30, 32MM
22AM I 6, 7, 8, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
22AM II 6, 7, 8, 9, 10, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 11/32, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4"
25M 6 to 28, 30, 32MM
25AM 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1"
26M 6 to 30, 32MM
27M I 6 to 32MM
27M II 6 to 28, 30, 32, 36, 38MM
30AM 6, 8, 10, 12, 13, 14, 15, 17, 18MM | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
32M 6 to 28, 30, 32, 34, 36, 38, 41, 46, 48, 50MM
