Box End Wrenches

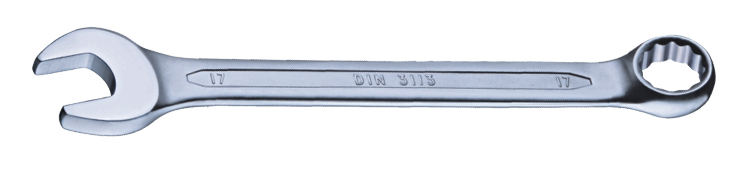

ART # 1061 COMBINATION SPANNER COLD COINED STAMPED (DIN-3113)





Combination Spanner Cold Coined Stamped

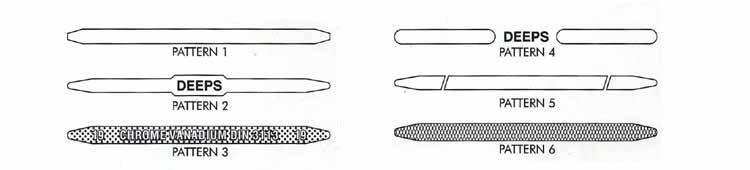

Patterns

FLANK




DESCRIPTION



HIGH PERFORMANCE
High Performance
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.



SIZE LENGTH WT/PC QTY/CTN GR.WT/CTN VOL./CTN
6MM 100 0.020 500 11.200 0.014
7MM 109 0.023 500 12.600 0.014
8MM 119 0.026 500 14.100 0.018
9MM 129 0.034 500 18.200 0.018
10MM 139 0.040 400 17.200 0.021
11MM 149 0.050 300 16.200 0.019
12MM 159 0.062 300 19.800 0.014
13MM 168 0.075 250 20.000 0.014
14MM 179 0.090 200 19.200 0.013
15MM 189 0.102 150 16.500 0.011
16MM 199 0.115 100 12.500 0.011
17MM 209 0.130 100 14.200 0.014
18MM 219 0.146 100 15.700 0.017
19MM 229 0.168 100 17.900 0.017
20MM 238 0.168 100 17.900 0.017
21MM 248 0.230 75 18.200 0.018
22MM 259 0.250 50 13.400 0.012
23MM 259 0.250 50 13.500 0.013
24MM 275 0.315 50 16.600 0.015
25MM 280 0.352 50 18.500 0.017
26MM 290 0.363 50 19.100 0.019
27MM 309 0.420 40 17.600 0.014
28MM 324 0.450 40 18.900 0.014
29MM 336 0.480 30 15.200 0.013
30MM 336 0.500 30 15.800 0.013
32MM 346 0.582 30 18.300 0.014
Sets Sizes
3M 8, 10, 12MM
6M I 6, 9, 10, 13, 15, 17MM
6M II 8, 10, 12, 13, 14, 17MM
6M III 9, 10, 11, 14, 17, 19MM
6M IV 11, 12, 13, 14, 15, 16MM
7M 10, 11, 12, 13, 14, 17, 19MM
7A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8A 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8M I 6, 8, 9, 10, 13, 15, 17, 19MM
8M II 8, 9, 10, 12, 13, 14, 17, 19MM
8M III 6, 8, 10, 12, 13, 14, 17, 19MM
8M IV 8, 10, 11, 12, 13, 14, 17, 19MM
8M V 8, 9, 10, 11, 13, 14, 17, 19MM
9A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
9M I 8, 10, 11, 12, 13, 14, 15, 17, 19MM
9M II 8, 10, 11, 12, 13, 14, 15, 17, 19, 22MM
9M III 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M I 6, 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M II 8, 10, 12, 13, 14, 17, 19, 22, 24, 27MM
10M III 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
11M I 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM
11M II 8, 9, 10, 11, 12, 13, 14, 17, 19, 22, 24MM
12M I 6, 7, 8, 9, 10, 11, 12, 13, 15, 17, 19, 22MM
12M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
12M III 8, 9, 10, 12, 13, 14, 17, 19, 22, 24, 27, 32MM
12M IV 8, 10, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32MM
12M V 10, 12, 13, 14, 16, 17, 19, 22, 24, 27, 30, 32MM
12M VI 6, 8, 9, 10, 11, 13, 14, 16, 17, 19, 21, 22MM
12M VII 10, 13, 15, 17, 19, 21, 22, 24, 25, 27, 28, 32MM
12M VIII 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22MM
12M IX 6, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 22MM
14M I 6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22, 24, 27MM
14M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19MM
14M III 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24MM
14M IV 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 23, 24MM
14M V 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24MM
15M 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 32MM
16M 8, 9, 10, 11, 12, 13, 14, 17, 19, 21, 22, 23, 24, 27, 30, 32MM
17M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22MM
21M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 25, 27, 28, 30, 32MM
22M I 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32MM
22M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 23, 24, 26, 27, 28, 30, 32MM
22M III 6 to 19 & 10, 13, 21, 22, 24, 27, 30, 32MM
22AM I 6, 7, 8, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
22AM II 6, 7, 8, 9, 10, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 11/32, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4"
25M 6 to 28, 30, 32MM
25AM 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1"
26M 6 to 30, 32MM
27M I 6 to 32MM
27M II 6 to 28, 30, 32, 36, 38MM
30AM 6, 8, 10, 12, 13, 14, 15, 17, 18MM | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
32M 6 to 28, 30, 32, 34, 36, 38, 41, 46, 48, 50MM
