Box End Wrenches

ART # 13 BOX-END WRENCHES SHALLOW OFFSET (Acc. to DIN 897)

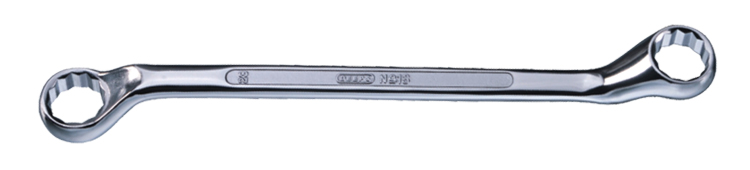

Box End Wrenches Shallow Offset



DESCRIPTION



HIGH PERFORMANCE
High Performance
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.



SIZE LENGTH SPANNER WT. QTY/CTN NET WT./ CTN GR.WT/CTN VOL./CTN
6X7 167 0.039 500 19.500 21.000 0.022
8X9 180 0.048 400 19.200 20.500 0.021
10X11 198 0.078 250 19.500 20.800 0.019
12X13 210 0.095 200 19.000 20.100 0.022
14X15 228 0.11 200 22.000 23.100 0.022
16X17 241 0.155 100 15.500 16.600 0.021
18X19 261 0.193 100 19.300 20.400 0.021
20X22 281 0.25 75 18.800 19.700 0.019
21X23 339 0.298 50 14.900 15.600 0.018
24X27 363 0.378 50 18.900 19.900 0.018
25X28 378 0.455 40 18.200 18.900 0.016
30x32 408 0.578 30 17.300 18.000 0.016


Sets Sizes
6M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM
8M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 , 18x19, 20x22 MM
12M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 , 18x19, 20x22, 21x23, 24x26, 25x28, 30x32 MM
